Earlsdon

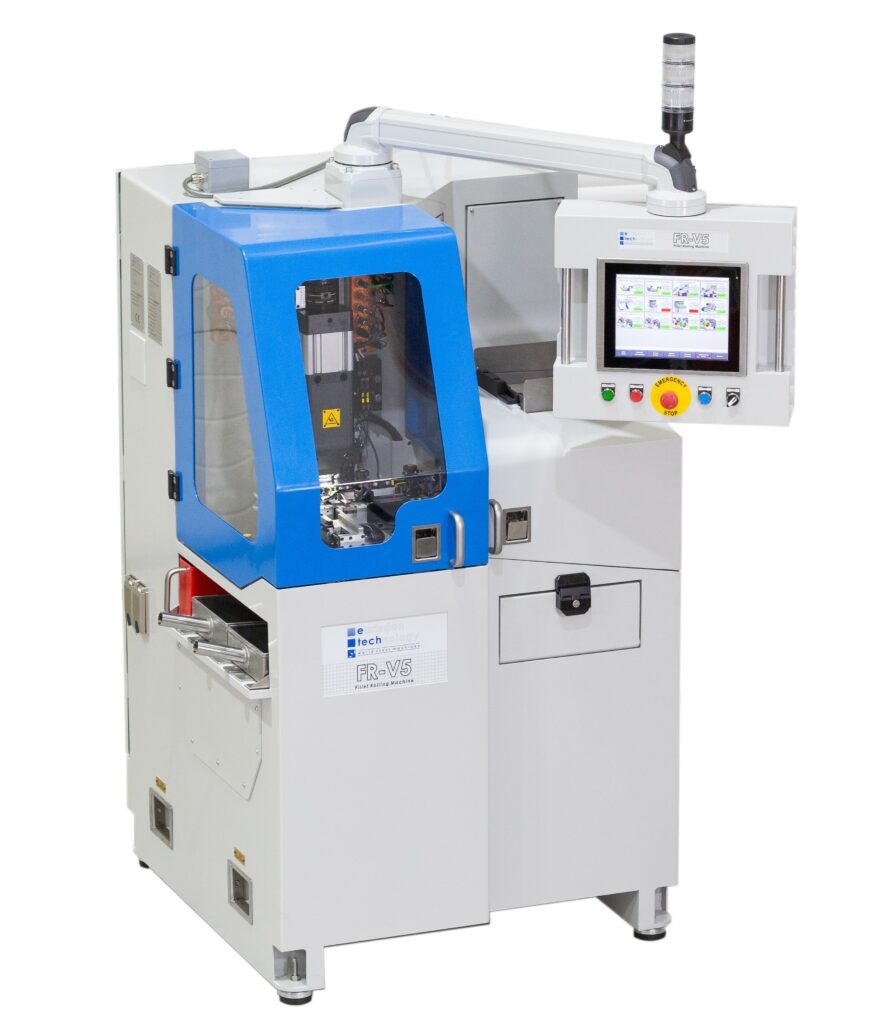

FR-V5

High-Speed Fillet Rolling Machine – With Conveyor Loading

New

Key Points

  • Rolling the underhead radius
  • 3,000 to 4,000 parts per hour
  • 100% in-process control of quality
  • 100% Monitoring of Rolling Force, Rolling Time and Roller
    Rotation
  • Minimal coolant use. No coolant splash or mist
  • Very small footprint
  • Fast changeover
  • Specially-written user-friendly software in multiple languages
  • Industry 4.0 compatible

Machine Features

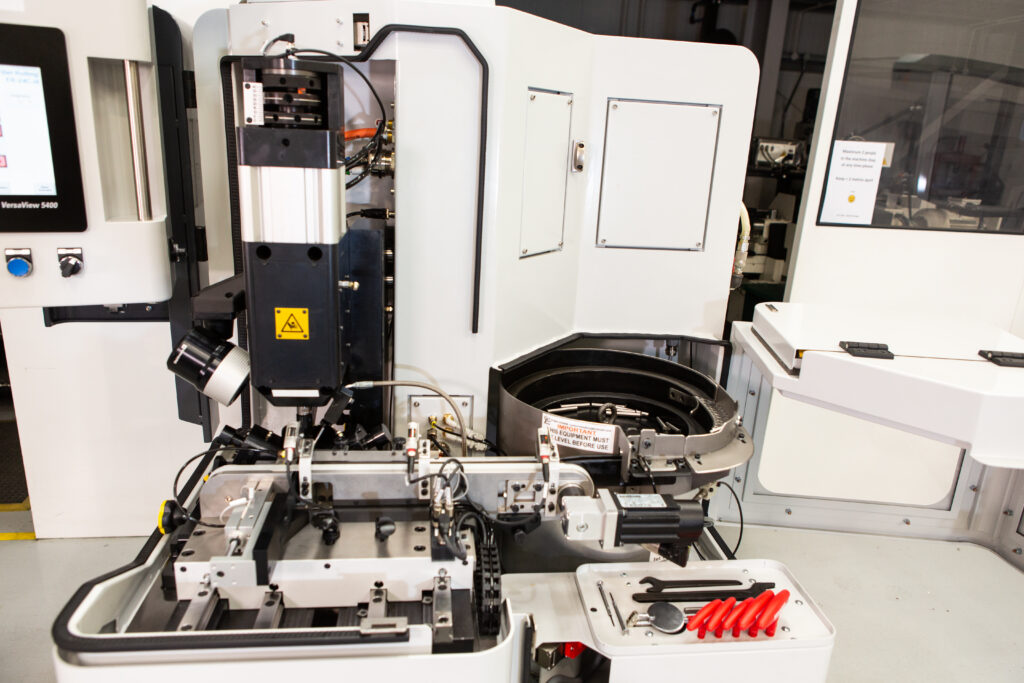

  • 18”/ 450 mm Ø Vibratory Bowl Feeder at a convenient height
    for loading parts or linking machines
  • Up to 400 kgf / 880 lbf Rolling Force

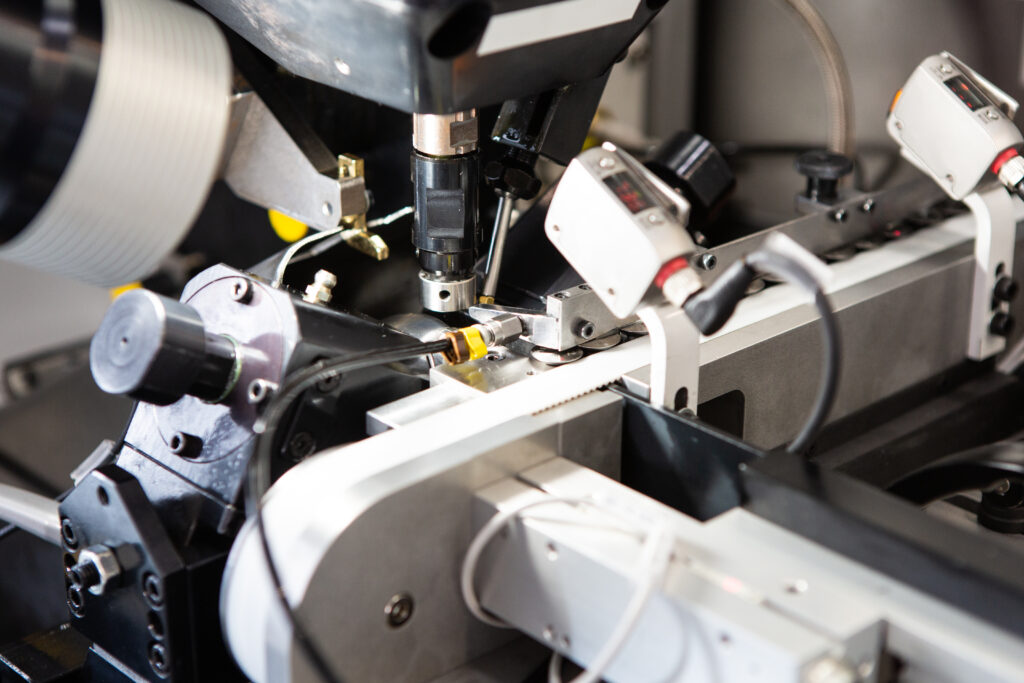

  • Load cell integrated into spindle to measure actual rolling force
  • Programmable control of rolling force, rpm & time
  • Servo controlled spindle motor
  • Conveyor input
  • Allen Bradley or Siemens PLC control system with touch-screen
    HMI
