Earlsdon

ADB-L2

Automatic Drill, Point and Broach Machine

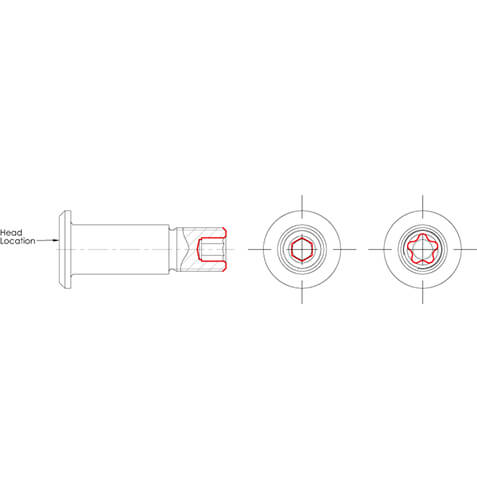

ADB-X3 - fastener pointing machines - application drawing

Key Points

  • Drilling, pointing, facing and broaching with petal removal
  • 1000 – 1500 parts per hour
  • All spindles have servo motor drive and servo in-feed
  • Broaching with servo-controlled roller screw
  • Servo-controlled indexing
  • No hydraulics

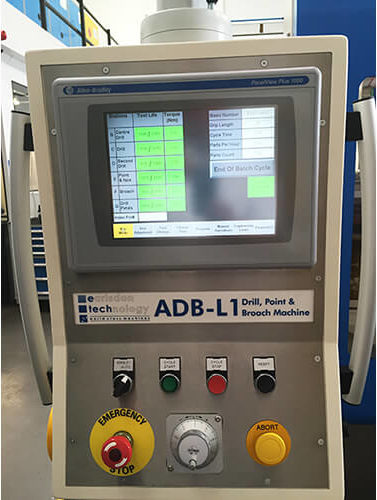

  • Specially-written user-friendly software in multiple languages
  • 3G / Ethernet Modem for remote access
  • Industry 4.0 compatible

Machine Features

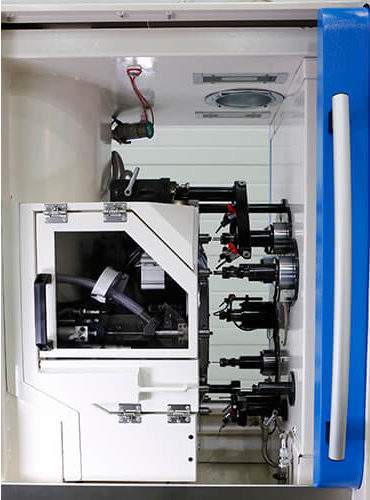

  • Stations:
    1. Load
    2. Centre Drill
    3. Drill
    4. 2nd Drill
    5. Point & face
    6. 2,000kgf Servo-controlled broach
    7. Drill petals
    8. Air blast to remove petals
    9. Coolant wash to clean locations
    10. Eject
  • Full programmable control of all axes
  • Independent control of all cutting speed sand feeds
  • Pre-settable tool-holders
